Structural principles:
The mesh belt dryer is a batch and continuous production drying equipment that uses electric heating, steam heating, and hot air heating to carry materials for continuous drying using a steel mesh as a conveyor belt.
Applications:
This equipment is widely used in industries such as metallurgy, building materials, ceramics, and chemicals. The mesh-belt dryer is also ideal for drying food and vegetables.
A mesh-belt dryer uses a steel mesh conveyor belt to continuously dry materials, making it suitable for assembly-line operations. Because the conveyor belt is mesh-like, it is particularly suitable for drying sheets, strips, and granular materials with good air permeability. Pastes such as filter cakes can also be dried after being formed using a granulator or extruder (e.g., coal lumps, various mineral powders, foods, vegetables, etc.). This machine can be used in conjunction with other equipment or standalone.
Product performance characteristics:
1. The mesh belt offers excellent air permeability, and the dwell time can be adjusted freely.
2. It covers a large drying area and provides high drying intensity.
3. The dual-circulation air distribution structure ensures uniform hot air distribution, eliminating uneven drying.
4. It is divided into several units, each with independent control of the circulation loop.
5. It offers stable and reliable operation, ease of use, and simple maintenance.
6. It features low investment, fast drying speed, and high evaporation intensity.
7. Standardized production allows for the addition of multiple stages based on production volume, making installation and maintenance easy.
8. Drying parameters can be easily adjusted, such as hot air volume, heating temperature, and material dwell time, providing great flexibility and wide adaptability.
9. Hot air is recycled, resulting in uniform temperature and high energy efficiency.
10. The equipment operates smoothly, preventing material damage.
11. A variety of heat sources are available, including electric heating, thermal oil heating, and hot air heating.
Technical performance table:
| Specification Model | JSHW6 | JSHW8 | JSHW10 | JSHW12 | JSHW16 | JSHW20 | JSHW24 | JSHW30 |
| Mesh Belt Width(mm) | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 3000 |
| Drying Section Length(m) | 6-12 | 6-12 | 6-16 | 8-16 | 8-22 | 10-26 | 12-30 | 12-40 |
| Feeding Section Length(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
| Drive Section Length(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
| Drying Area(m²) | 3.6-36 | 4.8-48 | 6-80 | 7.2-96 | 12.8-105.6 | 20-260 | 28.8-360 | 36-600 |
| Drive Power(kW) | 1.1-2.2 | 1.1-2.2 | 1.1-2.2 | 1.1-3 | 1.5-3 | 1.5-4 | 3-7.5 | 5-11 |
| Number of Layers | 1-5 | |||||||
| Layer Spacing | 400-600 mm | |||||||
| Load Capacity | 90-200 kg/m² | |||||||
| Operating Temperature | Carbon steel ≤400℃,Stainless steel≤600℃ | |||||||
| Evaporation Intensity | 5-20kg water/m²·h | |||||||
| Heat Source | Hot air, Electricity, Steam | |||||||
| Operating Speed | 0.06-1 m/min | |||||||
| Supporting Equipment | Conveying equipment, Hot air furnace, Dust removal equipment, Induced draft fan, etc. | |||||||
Keywords
Download
2025-09-02
12.3KB
Belt Dryer
Contact Us
Classification:
Case Introduction

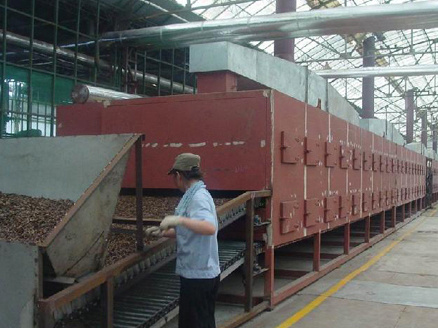

Mesh belt dryer application site

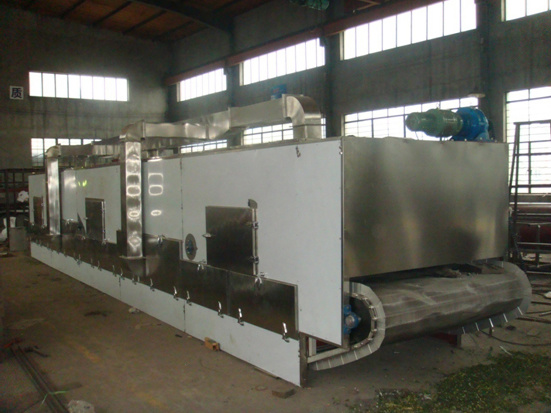

Mesh belt dryer application site
